Economic Spray Booth

An economic spray booth is critical for body shops that do painting work. If you do not want to invest too much money in spray booths, we suggest starting your business with YOKISTAR economic spray booth.

It covers all the basic features to fulfil your essential auto painting needs. If you have any different opinions on your future spray booth, please contact our sales team for discussion.

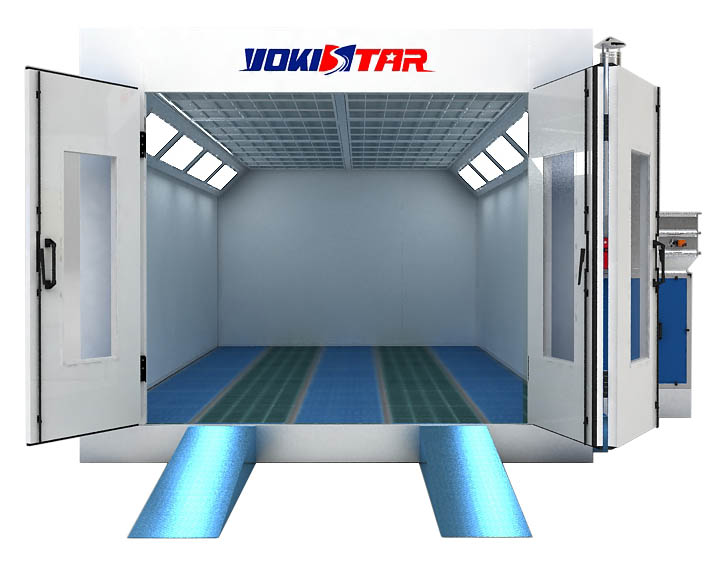

Yubase Series Spray Booth

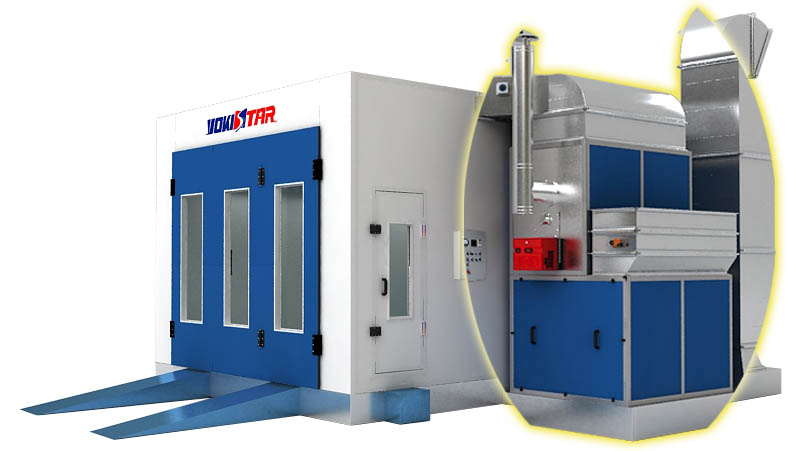

Yubase-O & B Spray Booth

The Yubase-O and Yubase-B Economic Spray Booth have same appearance.

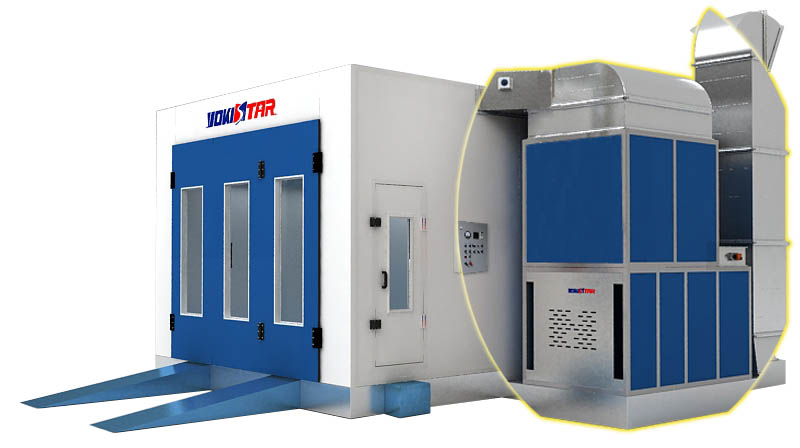

Yubase-T Spray Booth

The Yubase-T uses Direct Drive Motor and Single Intake Blower, so the apperance is different..

Would you like to know the detailed information for Yubase-O/B/T?

Download

Basement

2 rows grating, 3 rows indented plate.

Please kindly note that, the car can only stay on the grating, not on the indented plate.

Lighting Fixture

10 light fixtures positioned on the left and right side wall panel
Each light fixture has 4 pcs 36W Philips light

Intake Air Unit

Two 3KW outer roter centrifugal fan for Yubase-O
Two 3KW belt driven motor and centrifugal fan for Yubase-B
One 7.5KW direct drive motor and single intake fan for Yubase-T

Heating System

Riello G20 Diesel Burner
200KW stainless steel heat exchanger
1M stainless steel chimney

We did not equip with the exhaust air unit to save your cost, and the air will go out by nature pressure. The sidelights are not be equipped with, either.

We can add

one 4KW outer rotor centrifugal fan as exhaust air unit for Yubase-O,
one 4KW belt-driven motor and fan for Yubase-B.
one 5.5KW direct-drive motor and fan for Yubase-T
8 or 10 light fixtures (2pcs 36W fluorescent Philip light or LED 20W LED lights) as sidelights.
