Paint Curing Infrared Lamps
The Paint Curing Infrared Lamps from YOKISTAR are of perfect quality for a reasonable price.
We equip wheels with our Paint Dryers, so you can quickly move them around in your workshop, even in your spray booth and prep stations.
The heating reflection plate is made of 304# stainless steel, and the heat reflection rate can be more than 80%.
Most of the models are equipped with (digital) time – gauges and optionally equipped with distance – meters and temperature – sensors to dry safely and efficiently.
We sell both end-users and distributors, which can be shipped LCL or as a whole container by sea, railway, or air express.
- You can minimize the drying-curing time with CE-marked Paint Curing Infrared Lamps from YOKISTAR.
- You do not need to take 12+ hours to remove the moisture from your paint.
Floor Moveable Paint Curing IR Lamps
- Shortwave Infrared Heating Tubes are approved by an international particular light source laboratory, ensuring a long service life of more than 8000 hours.
- The Heat Reflection Plate is 304# stainless steel for a heat-reflecting rate of more than 80%.
- We apply Mechanical Timer and quality Electrical Elements to our infrared paint dryer.
- The Multi-Bearings Device is integrated with the PL-2E infrared lamp, creating one-handed, simple control for the cassette’s rotation.
- We equip our two cassette models (PL-2B & PL-2E) with an aluminum alloy column with location holes. This column provides a much easier operation for cassette height fixation than a standard stainless steel column.

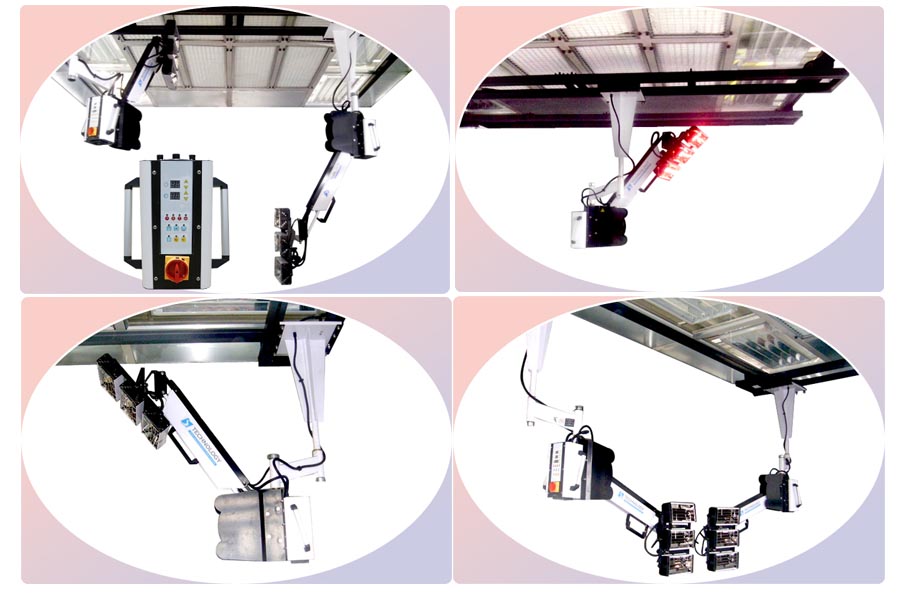

Ceiling Moveable Paint Curing IR Lamps
Model No.: YS-D302
Specification for YS-D302
- 3*1kw
- Dry area:0.8*0.6㎡/
- Dry distance:0.5-0.8m.
- Rising temperature-time:5-15min(20℃-80℃).
- Lamp length:480mm.
- Maximum curing time: 99 min.
- It has four preset programs for putty, clear coat, base coat, and water-based paint.
- Flash-off function.
- With a temperature controller option.
- There are four rails: 6.8M long in the vertical direction and 3.7 M long in the horizontal direction. The length can be changed according to the size of the working area.
Model No.: YS-D601
Specification for YS-D601
- 6*1kw
- Curing area: 2*0.6㎡/cassette.
- Dry distance:0.5-0.8m.
- Rising temperature Time:5-15min(20℃-80℃).
- Lamp length:480mm.
- Maximum curing time: 99 min.
- It has four preset programs for putty, clear coat, base coat, and water-based paint.
- Flash-off function.
- With a temperature controller option.
- There are four rails: 6.8M long in the vertical direction and 3.7 M long in the horizontal direction. The length can be changed according to the size of the working area.
Key Features
- Suitable for Automobile 4S Shop, Car Manufacturer, and other Paint Curing requirements.

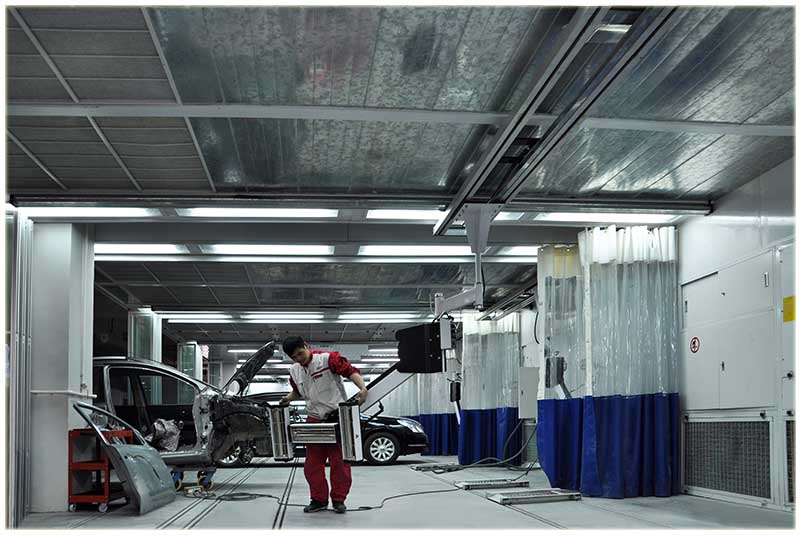

- Be installed on the ceiling (spray booth, prep station) or a solid wall.
- It works for all coatings (such as putty, base coat, clear coat, and water-based paint) and any part of the workpiece’s surface.
- Be moved horizontally and vertically by the track system and up and down by the hydraulic system.
- The cassettes can be rotated 360°.
- Each lamp can work individually.
- Over 8000 hours of service life
- The aluminum alloy track system ensures durability.
- No cables on the floor.
- Intelligent computerized control and easy operation.
- High-temperature resistant material provides safe and reliable work.
